L Type Wound Finned Tube ASME SA249 TP316L With Al1100 For Air Cooler

Name: L Type Wound Finned Tube ASME SA249 TP316L With Al1100 For Air Cooler
Brand: Yuhong
Price: 1 USD

Buy cheap L Type Wound Finned Tube ASME SA249 TP316L With Al1100 For Air Cooler product

Brand Name : Yuhong

Model Number : TP304,TP316L

Certification : DNV, BV, PED, LR, ABS, TS, CCS

Place of Origin : China

MOQ : 100KGS

Price : Negotiable

Payment Terms : L/C,T/T

Delivery Time : 7-45DAYS

Packaging Details : Ply-wooden Case /Iron Case/ Bundle with plastic Cap

Material : TP304,TP304L,TP316L,

Standard : ASME SA249

Type : Welded

Fin Type : L/KL

Fin THICKNESS : 0.4MM

Application : Air Cooler

Contact Now

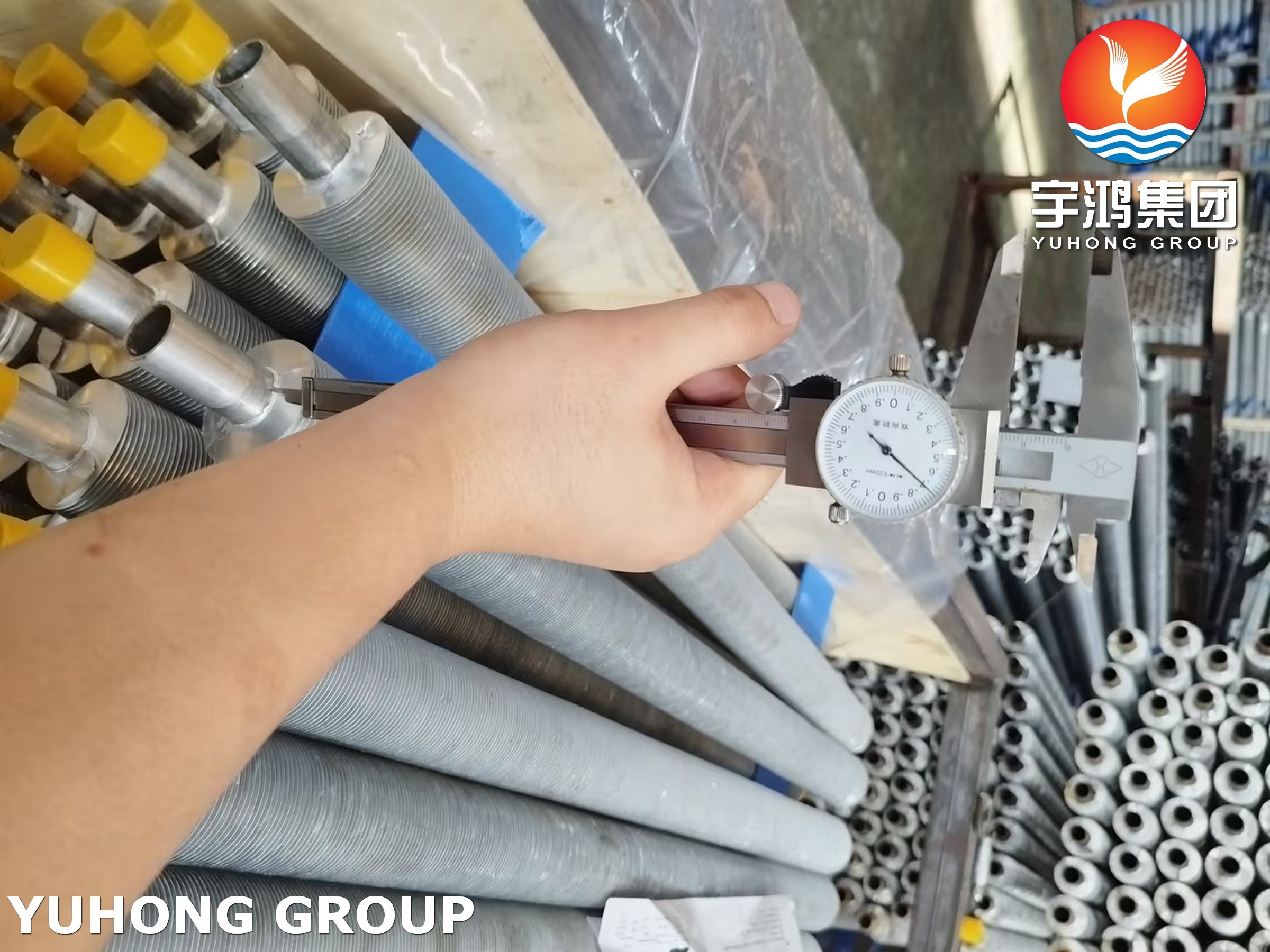

L Type Fin Tube Wound Fin Tube ASME SA249 TP316L With Al1100 For Air Cooler

Product Overview

The L Type Fin Tube, also known as a wound fin tube, is manufactured using ASME SA249 TP316L stainless steel as the base tube, with Aluminum 1100 (Al1100) fins mechanically wound around the tube. This type of finned tube is widely used in air coolers, heat exchangers, and condensers, offering high efficiency, corrosion resistance, and durability.

Key Features

Base Tube Material: ASME SA249 TP316L Stainless Steel
- Corrosion-resistant in high-temperature and chemical environments.
- Provides high mechanical strength and longevity.
- Ideal for marine, power plants, and chemical industries.
Fin Material: Aluminum 1100 (Al1100)
- Excellent thermal conductivity, ensuring efficient heat transfer.
- Lightweight and resistant to oxidation.
- Provides an economic and effective cooling solution.
Fin Type: L Type Wound Fin
- Mechanically wound aluminum fins tightly grip the base tube.
- Ensures maximum heat transfer with minimal thermal resistance.
- Ideal for low to moderate temperature applications.
Application: Air Coolers & Heat Exchangers
- Used in air-cooled condensers, refrigeration systems, and process cooling.
- Suitable for HVAC systems, petrochemical plants, and power stations.

Chemical Composition

Base Tube: ASME SA249 TP316L Stainless Steel

Element	Composition (%)
Carbon (C)	≤ 0.03
Manganese (Mn)	≤ 2.00
Phosphorus (P)	≤ 0.045
Sulfur (S)	≤ 0.030
Chromium (Cr)	16.00 - 18.00
Nickel (Ni)	10.00 - 14.00
Molybdenum (Mo)	2.00 - 3.00

Fin Material: Aluminum 1100 (Al1100)

Element	Composition (%)
Aluminum (Al)	≥ 99.0
Copper (Cu)	≤ 0.05
Iron (Fe)	≤ 0.40
Silicon (Si)	≤ 0.45

Mechanical Properties

Base Tube: ASME SA249 TP316L Stainless Steel

Property	Value
Tensile Strength	≥ 515 MPa
Yield Strength	≥ 205 MPa
Elongation	≥ 35%
Hardness	≤ 90 HRB

Fin Material: Aluminum 1100 (Al1100)

Property	Value
Tensile Strength	90 - 130 MPa
Yield Strength	30 - 50 MPa
Elongation	≥ 20%

Advantages of L Type Fin Tube

✅ High Heat Transfer Efficiency – Wound aluminum fins provide large surface area for heat exchange.
✅ Corrosion Resistant – 316L stainless steel resists oxidation and chemical damage.
✅ Lightweight & Cost-effective – Aluminum fins improve thermal performance while reducing weight.
✅ Mechanical Durability – L-type fins are tightly wound, ensuring good adhesion and heat dissipation.
✅ Wide Applications – Used in power plants, air-cooled condensers, and refrigeration systems.
