Brand Name : YUHONG
Model Number : ASTM A312 TP316L
Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin : CHINA
MOQ : 500KGS
Price : Negotiable
Payment Terms : L/C, T/T
Supply Ability : 1500 tons per month
Delivery Time : 5-8days
Packaging Details : Ply-wooden Case /Iron Case
Standard : ASTM A312
Grade : TP316L
Type : Seamless
Application : General Corrosive Service
Test : Weld Decay Test, Hydrostatic Test, Nondestructive Electric Test
Mechanical Test : Transverse Test, Longitudinal Tension Test, Flattening Test
Grain Size : ASTM E112
ASTM A312 TP316L Stainless Steel Seamless Pipe for General Corrosive Service
Yuhong, a prominent enterprise excelling in metal manufacturing, has long been a forerunner in delivering top - notch piping solutions. Specializing in stainless steel products, Yuhong is dedicated to meeting the strict requirements of diverse industries. When it comes to general corrosive service scenarios, the ASTM A312 TP316L stainless steel seamless pipes provided by Yuhong are an ideal option.
These pipes, with their chemical composition featuring chromium, nickel , molybdenum and low carbon content, offer excellent corrosion resistance against various corrosive media. They ensure reliable performance and a long service life in general corrosive environments, catering to the needs of industries like chemical, oil and gas, and marine construction.
ASTM A312 TP316L Chemical Requirements
Grade | UNS Designation | Carbon | Manganese | Phosphorus | Sulfur | Silicon | Chromium | Nickel | Molybdenum |
TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0 - 18.0 | 10.0 - 14.0 | 2.00 - 3.00 |
ASTM A312 TP316L Tensile Requirements
Grade | UNS Designation | Tensile Strength | Yield, min | ||
ksi | MPa | ksi | MPa | ||
TP316L | S31603 | 70 | 485 | 25 | 170 |
ASTM A312 TP316L Annealing Requirements
Grade | UNS Designation | Heat Treating Temperature | Cooling/Testing Requirements |
TP316L | S31603 | 1900 °F [1040 °C] | water or other rapid cool |
Pipe and Filler Metal Specification
Grade | UNS Designation | Filler Metal (AWS A5.9 Class) | UNS Designation(Filler Metal) |
TP316 | S31603 | ER316L | S31683, W31643 |
ASTM A312 TP316L Stainless Steel Seamless Pipe for General Corrosive Service
1. Excellent Corrosion Resistance
With molybdenum and low carbon (C ≤ 0.035%) design, it resists corrosion from media like chloride ions, acids, and alkalis, effectively preventing pitting, crevice, and intergranular corrosion.
2. Reliable Mechanical Properties
Yield strength ≥ 170 MPa, tensile strength ≥ 485 MPa. It balances strength and toughness, withstanding pressure and impact loads in piping systems.
3. Simple Weldability
Supports conventional welding processes without preheating or special filler materials, ensuring easy installation for chemical, oil & gas, marine, etc.
4. Long Life & Economy
Long service life in corrosive environments reduces maintenance and replacement costs, offering better economy in the long run.
![]() |

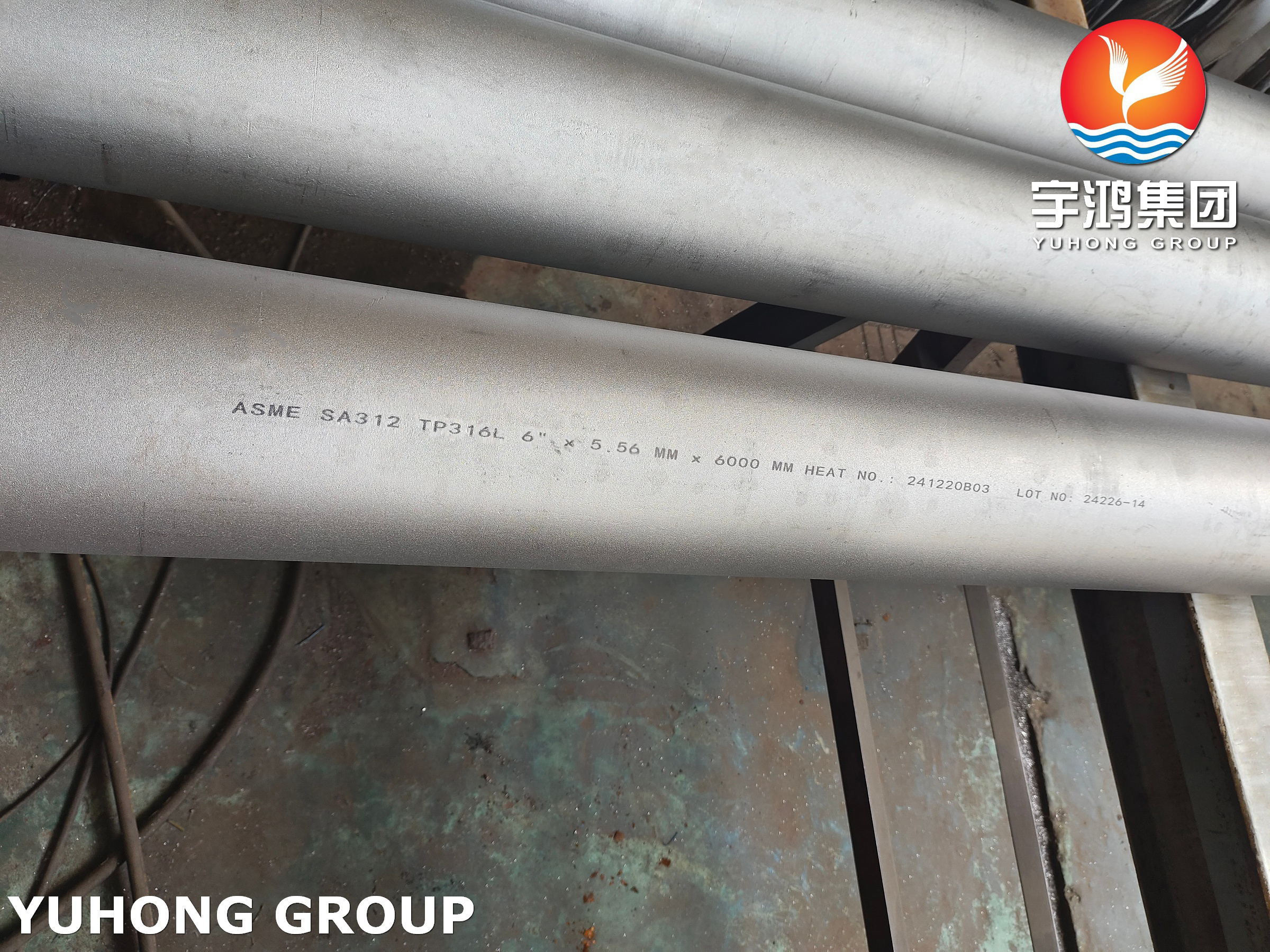

ASTM A312 TP316L Stainless Steel Seamless Pipe For General Corrosive Service Images |
