EN10216-2 P235GH TC1 Heat Exchanger Tube For High Temperature Environments

Brand Name : YUHONG

Model Number : EN10216-2 P235GH TC1

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Place of Origin : China

MOQ : 500KGS

Price : Negotiable

Payment Terms : T/T, L/C AT SIGHT

Supply Ability : 1500tons/month

Delivery Time : Depends on quantity

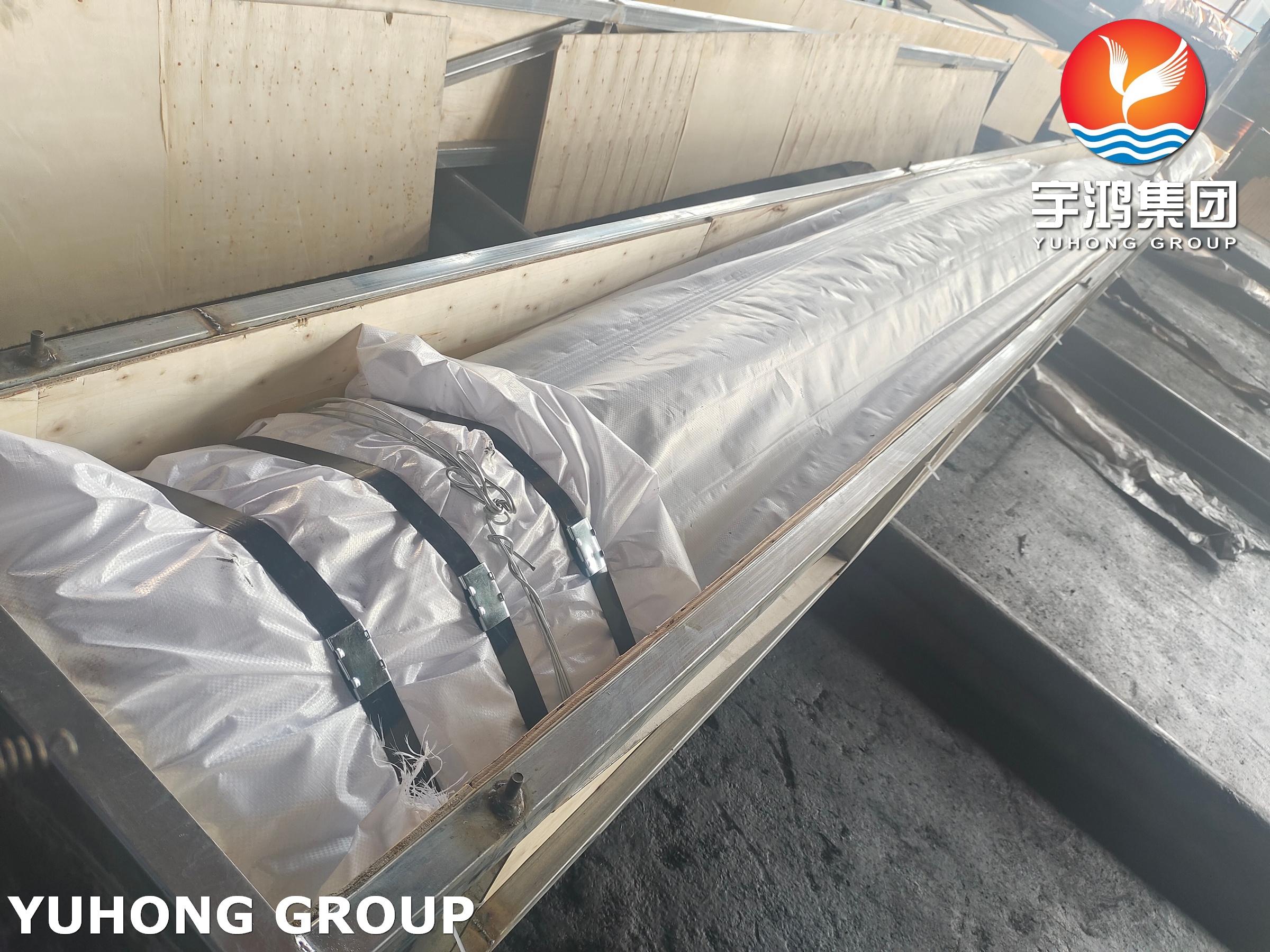

Packaging Details : Ply-wooden Case /Iron Case/ Bundle with plastic Cap

Standard : EN10216-2

Test : ET, UT, HT, PT

Type : Seamless

O.D. : 6.35- 114.3mm

W.T. : 0.508 to 3.4 mm

Contact Now

EN10216-2 P235GH TC1 Heat Exchanger Tube for High Temperature Environments







EN10216-2 P235GH TC1 pipe refers to a seamless steel pipe designed for pressure applications.
As the European standard for seamless steel pipes for pressure purposes, it covers the technical delivery conditions for steel pipes used in boilers, heat exchangers and piping systems. P235GH pipe has a minimum specified yield strength of 235 MPa at room temperature and is suitable for high temperature gas environments





TC1: Basic testing requirements.

Testing content includes:

Hydrostatic or ultrasonic testing.

One tensile test per batch.

One flattening/bending test per batch.





Note: TC2 requires more stringent testing (e.g., comprehensive non-destructive testing, more frequent testing)









EN 10216-2 Grade P235GH Tubes Chemical Properties



Carbon Silicon Manganese Phosphorous Sulphur Molybdenum Nickel Chromium Copper Others
max 0.16 max 0.35 max 1.20 0.025 0.01 max 0.08 max 0.30 max 0.30 max 0.30 V max 0.02 Ti max 0.04 Al min 0.020



EN 10216-2 Grade P235GH Tubes Mechanical Properties



Yield Strength Tensile Strength Elongation A5 min
MPa min ksi min MPa min MPa min ksi min Percentage
    360 500 25



EN 10216-2 Grade P235GH Tubes Equivalent Designation



DIN EN BS NFA ASTM ASME
EN 10216-2 Grade P235GH











Application





Steam Boilers: Water walls, economizers and low pressure steam piping



Heat Exchangers: Condensers, feedwater heaters and cooling system tubes.



District Heating Systems: Hot Water Pipes



Process Piping for Non-Corrosive Fluids.



Structural Support for Pressure Vessels



Thermal Fluid Systems (Thermal Oil Loops).



High Strength Piping for Heating/Cooling Systems.
