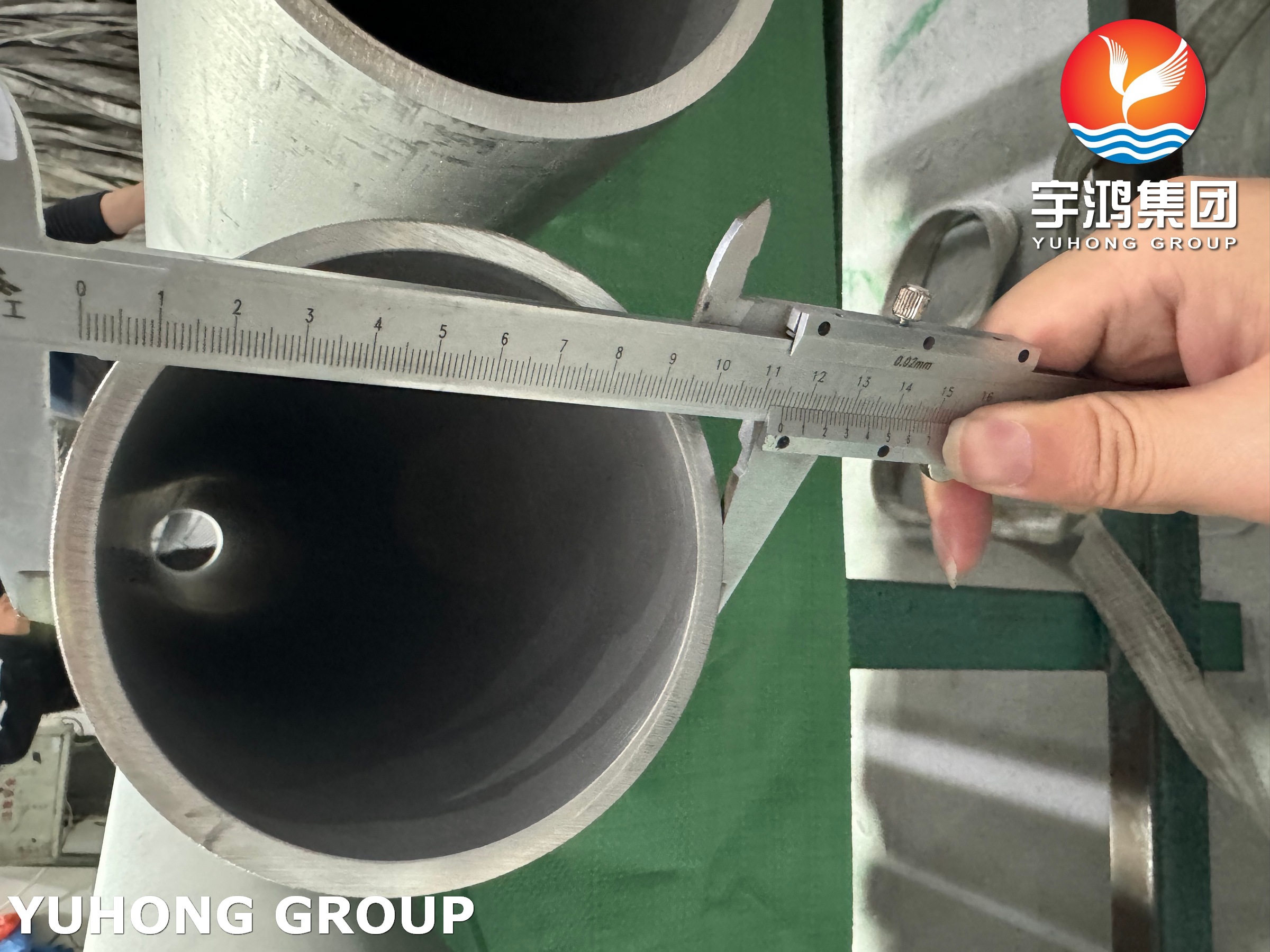

EN 10216-5 UNS32205 Duplex Stainless Steel Tube The European Standard for Energy and Chemical Industries
EN 10216-5 UNS32205 (Duplex Stainless Steel 2205) Seamless Tube is a high-performance material with a duplex structure of austenite and ferrite. It has a tensile strength of 750-850 MPa and a yield strength of over 450 MPa, which is significantly better than traditional austenitic stainless steel. It also has excellent resistance to chloride stress corrosion cracking (SCC) and pitting (PREN≥35), and is suitable for harsh environments such as oil and gas transportation (resistance to H₂S/CO₂ corrosion), desalination high-pressure pipelines and chemical reactors.
It has a wide temperature resistance range (-50°C to 300°C), and its lightweight design can reduce wall thickness, but it is necessary to control the welding heat input (ER2209 welding material is recommended) and avoid the 475°C brittle range. It is an efficient corrosion-resistant solution to replace carbon steel or austenitic stainless steel.
EN 10216-5 UNS32205 seamless tube is based on European standards. It has become the preferred material for European energy, chemical and marine engineering through high strength, corrosion resistance and environmental compliance throughout the life cycle. Its manufacturing and testing strictly follow the EN/ISO system to ensure reliability under high pressure, corrosion and extreme temperatures. It is a benchmark product that meets the EU's industrial sustainable development goals.
Chemical Composition UNS S32205 Duplex Stainless Steel Seamless Tubes
| Grade | | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 2205 (UNS S31803) | Min Max | - 0.030 | - 2.00 | - 1.00 | - 0.030 | - 0.020 | 21.0 - 23.0 | 2.5 - 3.5 | 4.5 - 6.5 | 0.08 - 0.20 |
| 2205 (UNS S32205) | Min Max | - 0.030 | - 2.00 | - 1.00 | - 0.030 | - 0.020 | 22.0 - 23.0 | 3.0 - 3.5 | 4.5 - 6.5 | 0.14 - 0.20 |
Mechanical Composition UNS S32205 Duplex Stainless Steel Seamless Tubes
| Grade | Tensile Strength
(MPa) min | Yield Strength
0.2% Proof
(MPa) min | Elongation
(% in 50mm) min | Hardness |
| Rockwell C (HR C) | Brinell (HB) |
| UNS S31803 / 2205 | 621 | 448 | 25 | 31 max | 293 max |
Physical Properties OF UNS S32205 Duplex Stainless Steel Seamless Tubes
| Grade | Density
(kg/m3) | Elastic
Modulus(GPa) | Mean Co-eff of Thermal
Expansion (μm/m/°C) | Thermal
Conductivity (W/m.K) | Specific
Heat
0-100°C( J/kg.K) | Electrical
Resistivity
(nΩ.m) |
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C |
| UNS S31803 / 2205 | 782 | 190 | 13.7 | 14.2 | - | 19 | - | 418 | 850 |
Grade Specification Comparison
| Grade | UNS
No | Old British | Euronorm | Swedish SS | Japanese JIS |
| BS | En | No | Name |
| 2205 | S31803 / S32205 | 318S13 | - | 1.4462 | X2CrNiMoN22-5-3 | 2377 | SUS 329J3L |
Application
1. Marine and oil and gas engineering (European core applications)
2. Chemical and pharmaceutical (REACH/ROHS compliance)
3. Energy and low-carbon transformation
4. Rail transit and ships
