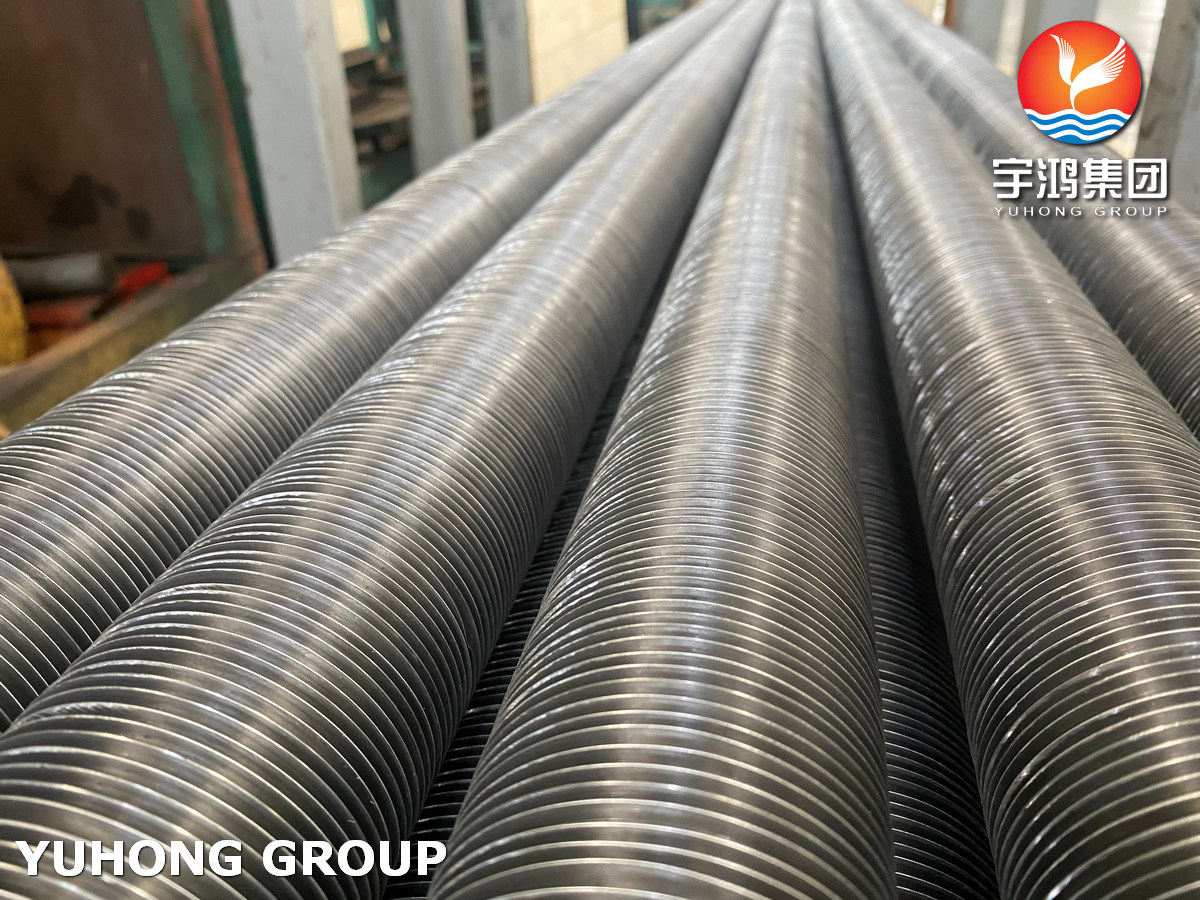

ASTM A179 Carbon Steel Embedded Finned Tube G-Type, Tubos Aletados
YUHONG Group can handle kinds of projects, such as heat exchanger / boiler projects, marine projects, oil & gas projects etc. We offer various types of fin tubes.
Fin tubes are used in many different industries. These tubes have a finned surface, which increases their surface area and allows them to transfer heat more efficiently. Because of that,this makes them ideal for applications where high heat transfer rates are required.
Specifications For Various Types Of Finned Tubes
| Type | Description | Base tube | Fin specification (mm) |
| O.D. (mm) | Fin pitch | Fin height | Fin thick |
| Embedded | G-type fin tueb | 16-63 | 2.1~5 | <17 | ~0.4 |
| Extruded | Single metal combined metal | 8-51 | 1.6~10 | <17 | 0.2-0.4 |
| Low fin tube t-type fin tube | 10-38 | 0.6~2 | <1.6 | ~0.3 |
| Bamboo tube corrugated tube | 16-51 | 8.0~30 | <2.5 | / |
| Wound | l/kl/ll type fin tube | 16-63 | 2.1~5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3~25 | 5~30 | 0.8-3 |
| H/HH type fin tube | 25-63 | 8~30 | <200 | 1.5-3.5 |
| Studed fin tube | 25-219 | 8~30 | 5~35 | φ5-20 |
Tube Material : Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, duplex Steel, Super Duplex Steel, Inconel, High Chrome High Nickle & Incolloy, CK 20 material and some other material.
ASTM A179 Embedded G-Type Aluminum Fin Tube we sell in over 70 countries.Embedded Fin Tubes also called G type Finned Tube, Embedded Finned Tube provides a perfect connection between the fin and the tubes . The Embedded Fin tubes main design is that through professional equipment groove the tubes and fin insert fins into the helical groove. Finally combined the fin and tubes as intergral.(G-Fins) are made by winding aluminium or copper strip into a helical groove machined on the outer surface of the tube.
Embedded Fin tubes can be used in higher temperatures and are very durable. Embedded Fin tubes are best suited for the usages that involve high thermal cycling or high temperatures and where the fin side will be subjected to regular cleaning .
Features Of G-Type Finned Tube
Easy installation
High-performance
Easy installation
Less space required
Less cabling
Optimized surface
Finest technology used
Less energy consumption
Increased reliability
Low maintenance
High mechanical resistance
Compact design
Average corrosion protection
Detailes Of ASTM A179Tube
ASTM A179 this specification covers minimum-wall-thickness, seamless cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus.Tubes shall be heat treated after the final cold draw pass at a temperature of 1200°F(650℃ )or higher.
Chemical Composition (%)
| Grade | C | Mn | P | Su |
| A179 | 0.06-0.18 | 0.27-0.63 | 0.035, max | 0.035, max |
Mechanical Properties
| Grade | Tensile Strength,min | Yield Strength (0.2%Offset,min) | Elongation | Rockwell Hardness |
| A179 | ksi-47,MPa-325 | psi-26,MPa-180 | 35% | / |
Inspections and Tests
| Inspections and Tests:G-fin; L-fin; LL-fin; KL-fin; Extruded-fin Finned Tubes |
| 1.Chemical Composition |
| 2.Mechanical Properties |
| 3.Hydrostatic Test |
| 4.Pneumatic Test |
| 5.Boroscopic Inspection |
| 6.Eddy Current Test |
| 7.Tensile Test (only for bimetallic tube) |
Related Industries Involved
Chemical industry
Petroleum Industry
Metallurgical industry
Power industry
Light industry
Pharmaceutical industry
Food industry
Application
Steam Coils
Air Perheaters / Air Cooling Heat Exchanger
Finned Tube Heat Exchangers
Air Coolers / Oil Coolers / Hydrogen Coolers / Generator Coolers
Waste Heat Recovery
Driers
Air Conditioning / Air Heaters
Steam Condensers
Heat Pipe Technology
For a rapid quotation, pls send with following requirement:
1.Number of Pieces.
2.Base Tube: Diameter, thickness, length and material specification.
3.Fins: material specification, type (solid or serrated), height, thickness, spacing, finned length and unfinned sections. Weld prep details if required.
4.Delivery period required.
Product Tags:
|
|

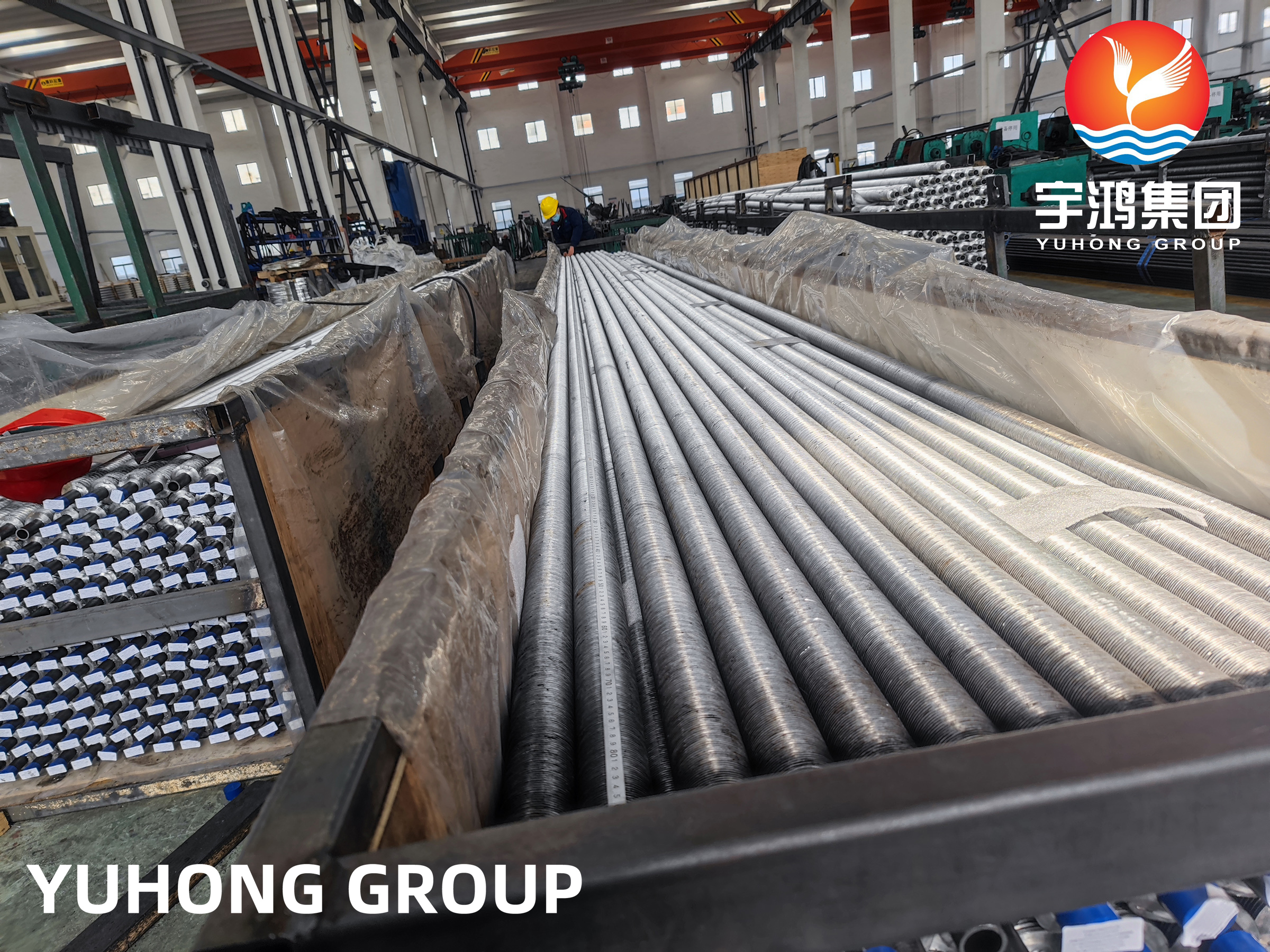

ASTM A179 Carbon Steel Embedded Finned Tube G-Type, Tubos Aletados Images
|
