ASTM A182 F304 Insert, Socket Weld Fitting B16.11, In High-Pressure Piping Systems

Name: ASTM A182 F304 Insert Socket Weld Fitting B1611 In HighPressure Piping Systems
Brand: YUHONG
Price: 1 USD

Buy cheap ASTM A182 F304 Insert, Socket Weld Fitting B16.11, In High-Pressure Piping Systems product

Brand Name : YUHONG

Model Number : ASTM A182 - F304

Certification : ISO9001, PED, etc.

Place of Origin : China

MOQ : 1PC

Price : Negotiable

Payment Terms : T/T, L/C AT SIGHT

Supply Ability : 5000 pcs per month

Delivery Time : Depends on quantity

Packaging Details : Ply-wooden Case / Carton

Size Range : Commonly from ½" to 4" (ASME B16.11)

Pressure Rating : Class 3000 / 6000 / 9000 (depending on system)

Connection Type : Socket weld (end inserted and fillet welded)

Surface Finish : Machined finish for clean weld preparation

Contact Now

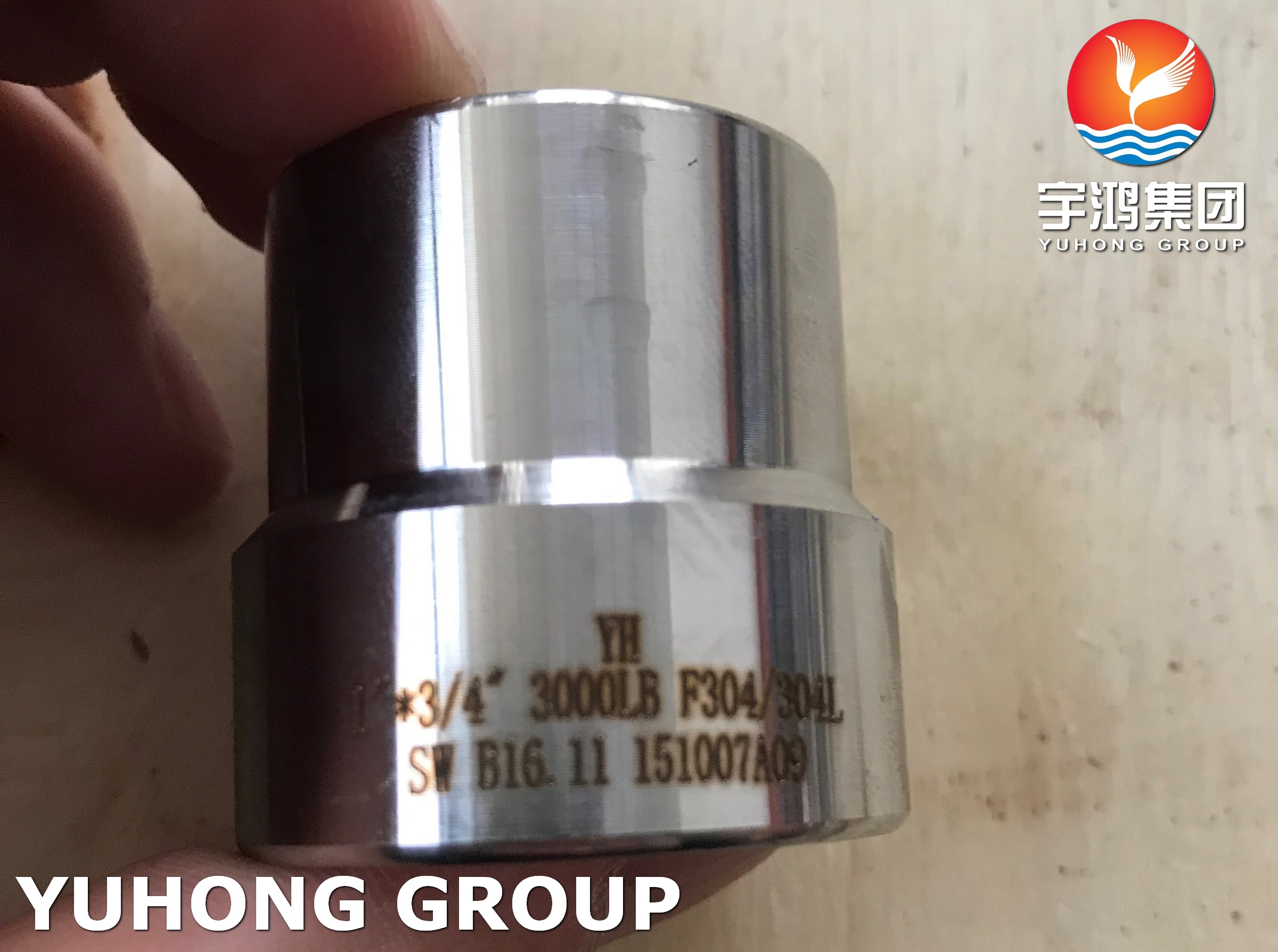

ASTM A182 F304 Insert, Socket Weld Fitting B16.11, In High-Pressure Piping Systems

What Is ASTM A182 F304 Insert?

ASTM A182 F304 Insert is a forged stainless steel pipe fitting made from grade F304 (the forged version of 304 stainless steel), and is typically used as a socket weld fitting in high-pressure piping systems.

Definition & Description

Insert: A short-length socket weld fitting used to connect pipe ends by inserting them into the socket and welding around the outside.
Socket Weld: A type of welded joint where the pipe is inserted into a recessed area of the fitting, creating a strong, leak-proof connection ideal for high-pressure and high-temperature service.
Material: ASTM A182 F304 — forged austenitic stainless steel (similar to 304 stainless steel), offering excellent corrosion resistance, weldability, and mechanical strength.

Chemical Composition of A182 F304

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
304	min. max.	- 0.08	- 2.0	- 0.75	- 0.045	- 0.030	18.0 20.0	-	8.0 10.5	- 0.10
304L	min. max.	- 0.030	- 2.0	- 0.75	- 0.045	- 0.030	18.0 20.0	-	8.0 12.0	- 0.10

Mechanical Properties of A182 F304

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Rockwell B (HR B) max	Brinell (HB) max
304	515	205	40	92	201
304L	485	170	40	92	201

Equivalent Grades of A182 F304

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 304	1.4301	S30400	SUS 304	304S31	08Х18Н10	Z7CN18-09	X5CrNi18-10

Application of ASTM A182 F304 Insert

High-pressure steam and process lines
Oil & gas piping systems
Chemical and petrochemical plants
Food and beverage processing
Marine and offshore systems
