Stainless Steel Capillary Needle ASTM A269 TP304 1.4301 Needle Tube

Brand Name : YUHONG

Model Number : ASTM A269 TP304

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Place of Origin : CHINA

MOQ : 10KG

Payment Terms : T/T, L/C

Delivery Time : Depends On Quantity

Packaging Details : PALLET,PLYWOOD CASE

OD : 0.1MM-25MM

TYPE : Seamless, Welded

APPLICATION : Medical, Industry, Decoration, Construction, Ornament

Specification : ASTM A269

Grade : TP304

Material : Stainless Steel

Contact Now

Stainless Steel Capillary Needle ASTM A269 TP304 1.4301 Needle Tube





Capillary Tube is a long, narrow tube of constant diameter. The word "capillary” is a misnomer since surface tension is not important in refrigeration application of capillary tubes.



Stainless Steel Capillary Pipes & Tubes are used in different applications of intra/extra cellular biology, separation sciences, hematology sampling and study, biotechnology, and biochemistry.



Features


-Tight tolerances

-Free from oil & dust particles from inside

-Rust resistant



Applications Of Stainless Steel Capillary Tube



-Medical device industry – injection needle tube, puncture needle tube

-Industrial electric heating tube, oil tube

-Temperature sensor, Sensor tube, Instrument tube

-Automobile tube

-Food industrial pipe



Stainless Steel Capillary Needle ASTM A269 TP304 1.4301 Needle Tube



A269 TP304 STAINLESS STEEL TUBING EQUIVALENT GRADES



Grade UNS Old British Euronorm Swedish SS Japanese JIS
BS En No Name
ASTM A269 TP304 Tubes S30400 304S31 58E 1.4301 X5CrNi18-10 2332 SUS 304





TP304 CHEMICAL COMPOSITION



Grade C Mo Ni N Mn Si P S Cr
ASTM A269 TP304 Tubes minimum – 8.0 – – – – – – 18.0
maximum 0.08   10.5 0.10 2.0 0.75 0.045 0.030 20.0





ASTM A269 TP304 TUBE PHYSICAL PROPERTIES



Grade Density (kg/m³) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (μm/m/°C) Thermal Conductivity (W/m.K) Specific Heat 0-100°C (J/kg.K) Electrical Resistivity (nΩ.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
A269 TP304 8000 193 17.2 17.8 18.4 16.2 21.5 500 720





ASTM A269 TP304 TUBE MECHANICAL PROPERTIES



Grade Tensile Strength (MPa) minimum Yield Strength 0.2% Proof (MPa) minimum Elongation (% in 50mm) minimum Hardness
Rockwell B (HR B) maximum Brinell (HB) maximum
A269 TP304 Tube

515

205

40

92

201





Stainless Steel Capillary Tube Size Range




Gauge		 Outside Diameter Tolerance mm Regular Wall Thickness (RWT) mm Thin Wall Thickness mm Extra Thin Wall Thicknessmm Ultra Thin Wall Thickness mm
30 0.304 – 0.317 0.064 – 0.089
29 o.330 – 0.342 0.064 – 0.089
28 0.355 – 0.368 0.076 – 0.102
27 0.406 – 0.419 0.089 – 0.115 0.064 – 0.089
26 0.457 – 0.469 0.089 – 0.114
25 0.508 – 0.520 0.115 – 0.140 0.089 – 0.114
24 0.558 – 0.571 0.114 – 0.140 0.089 – 0.114   0.051 – 0.102
23 0.635 – 0.647 0.140 – 0.165 0.089 – 0.114   0.051 – 0.102
22 0.711 – 0.723 0.140 – 0.165 0.096 – 0.121 0.077 – 0.102 0.051 – 0.102
21 0.812 – 0.825 0.140 – 0.165 0.102 – 0.127   0.051 – 0.102
20 0.901 – 0.914 0.108 – 0.165 0.108 – 0.134
19 1.054 – 1.079 0.166 – 0.216 0.102 – 0.140 0.070 – 0.108
18 1.257 – 1.282 0.191 – 0.241 0.127 – 0.165 0.083 – 0.121 0.051 – 0.102
17 1.460 – 1.485 0.177 – 0.229 0.115 – 0.152 0.083 – 0.127 0.057 – 0.102
16 1.638 – 1.663 0.204 – 0.254 0.127 – 0.165 0.096 – 0.133 0.070 – 0.121
15 1.816 – 1.841 0.204 – 0.254 0.127 – 0.165 0.096 – 0.134 0.070 – 0.121
14 2.082 – 2.133 0.216 – 0.292 0.165 – 0.229 0.114 – 0.165 0.076 – 0.134
13 2.387 – 2.438 0.267 – 0.343 0.191 – 0.267
12 2.743 – 2.749 0.267 – 0.321
11 3.023 – 3.073 0.293 – 0.368 0.216 – 0.292
10 3.378 – 3.429 0.318 – 0.394 0.216 – 0.292

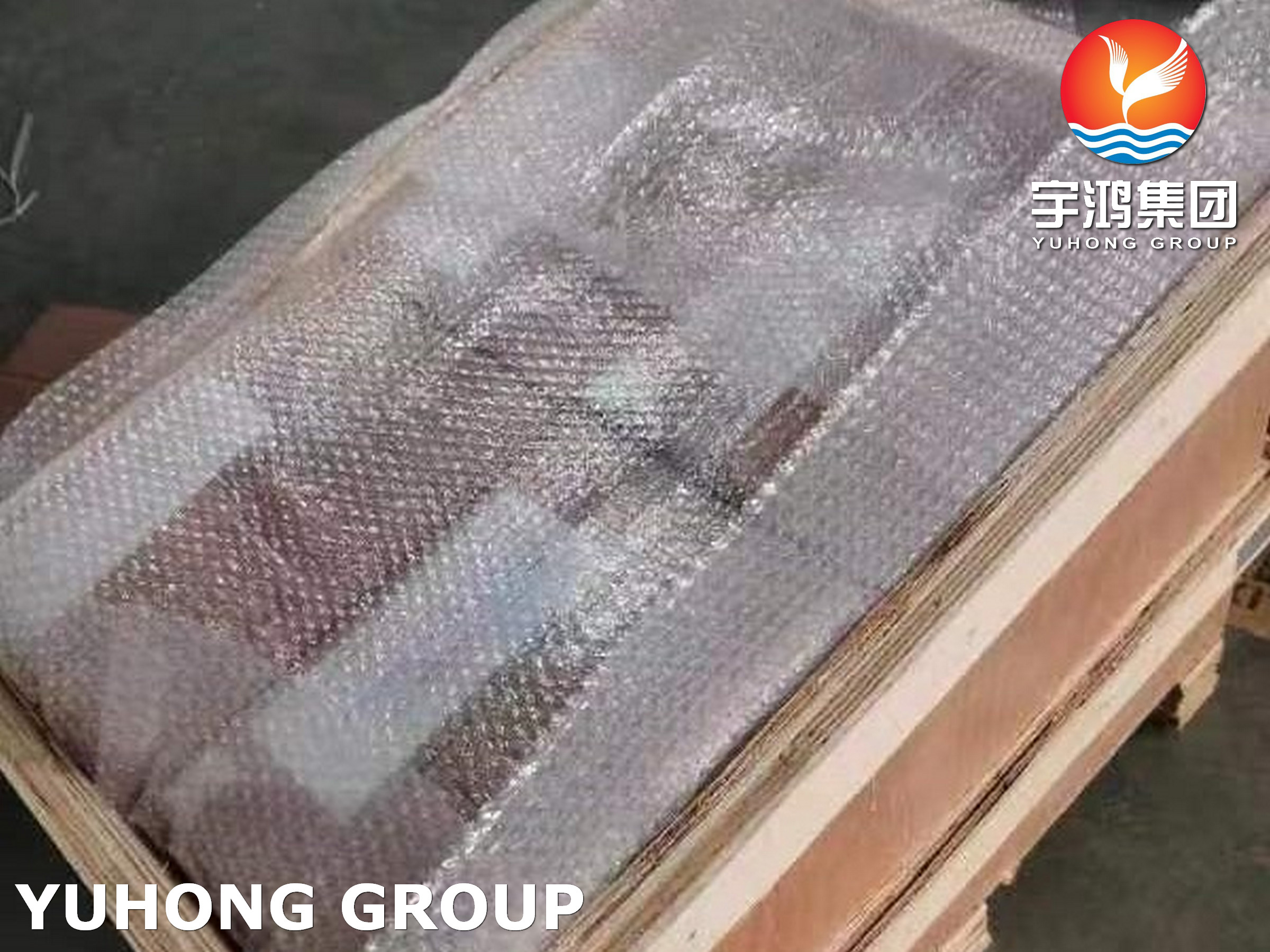

Package

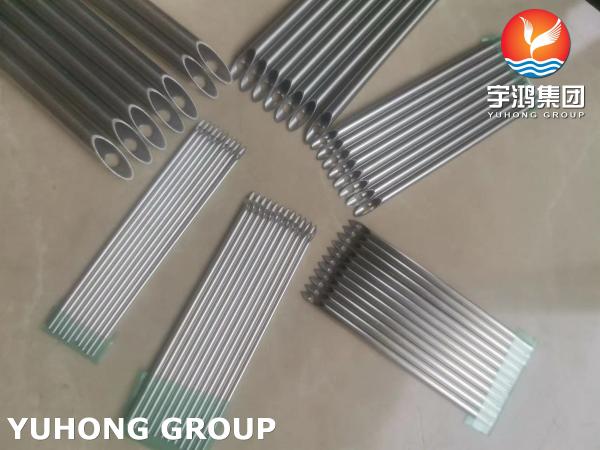

Stainless Steel Capillary Needle ASTM A269 TP304 1.4301 Needle Tube
