ASTM B111 C70600 Copper-Nickel Alloy Seamless Tube CU-NI Alloy
We are one of the largest stainless steel, duplex steel and alloy steel pipe manufacturers in China. After more than 20 years of development, we have accumulated a large number of customers all over the world, and Yuhong products have also won unanimous praise from customers.
C70600 (C706) and C71500 (C715), copper nickel has excellent corrosion resistance, especially in marine salt water environment. The main forged copper-nickel alloys selected for seawater service contain 10% or 30% nickel. They also add important iron and manganese, which are necessary to maintain good corrosion resistance. Some of the main uses of C706 include CuNi Fittings and condenser and exchanger housings.
C70600 Pipe Specifications: ASTM / ASME SB111/466/7060X/CuNi10Fe1.6Mn/CN102
C70600 Pipe Standard: ASTM, ASME B36.19, DIN 86019, EEMUA 144, EEMUA 234, MIL-T-16420K
C70600 Pipe Size: 1/2″ TO 20′ IN, DN15 TO DN500
Outer Diameter: 15mm to 508mm
Wall Thickness: Between 1mm and 11 mm
Length: mainly 6meter or required Length
Schedule: Sch10, Sch40, Sch80, STD
C70600 Pipe Pressure Rating:
10bar, 14bar for DIN 86019
16bar, 20bar for EEMUA 144, EEMUA 234
Class 200, Class 700 for MIL-T-16420K.
Types : Seamless less than 419mm ( included 419mm)/Seam Welded(over 419mm)
End: Plain End, Beveled End, Treaded
Grades : Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
C70600 chemical composition
| C70600 chemical composition | DIN 86019 | EEMUA 144 | BS 2871 | ASTM B466 | JIS H 3300 | MIL-T-16420K |
| Ni% | 9.0-11.0 | 10.0-11.0 | 10.0-11.0 | 9.0-11.0 | 9.0-11.0 | 9.0-11.0 |
| Fe% | 1.5-1.8 | 1.5-2.0 | 1.0-2.0 | 1.0-1.8 | 1.0-1.8 | 1.0-1.8 |
| Mn% | 0.5-1.0 | 0.5-1.0 | 0.5-1.0 | Max.1.0 | 0.2-1.0 | Max1.0 |
| C% | Max.0.05 | Max.0.05 | Max.0.05 | Max.0.05 | | Max.0.05 |
| Pb% | Max.0.03 | Max.0.01 | Max.0.01 | Max.0.02 | Max.0.05 | Max.0.02 |
| S% | Max.0.015 | Max.0.02 | Max.0.05 | Max.0.02 | | Max.0.02 |
| P% | Max.0.02 | Max.0.02 | | Max.0.02 | | Max.0.02 |
| Zn% | Max.0.15 | Max.0.20 | | Max.0.50 | Max.0.50 | Max.0.05 |
| Zr% | Max.0.03 | | | | | |
| Others | Max.0.30 | Max.0.30 | Max.0.30 | | | |
| Cu% | Balance | Balance | Balance | Balance | Cu+Ni+Fe+MnMin.99.5 | Min.86.5 |
C70600 Mechanical Properties
ASTM B466 Seamless Pipes & Tubes Application Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
Mechanical Testing Such as Tensile of Area
- Hardness Test
- Chemical Analysis – Spectro Analysis
- Positive Material Identification – PMI Testing
- Flattening Test
- Micro and MacroTest
- Pitting Resistance Test
- Flaring Test
- Intergranular Corrosion (IGC) Test
Product Tags:
|
|

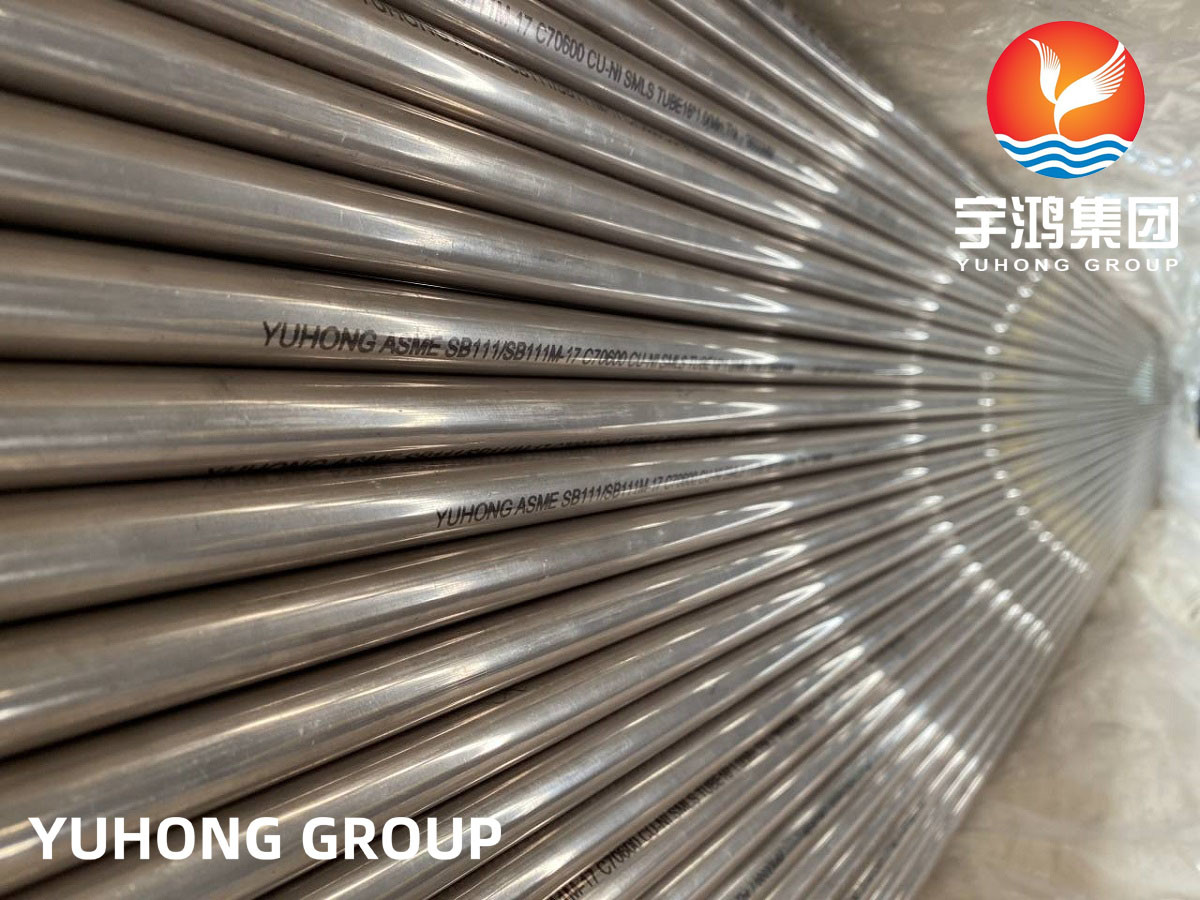

ASTM B111 C70600 Copper-Nickel Alloy Seamless Tube CU-NI Alloy Images
|
